8-Bit Computer Part II - ALU All Day

8-Bit Computer - ALU Unit

The ALU unit is “fun”.

First attempt at drawing. “The paper and pen attempt”. Failed after I started taping sheets of paper together. This feels like it would quickly lead to madness.

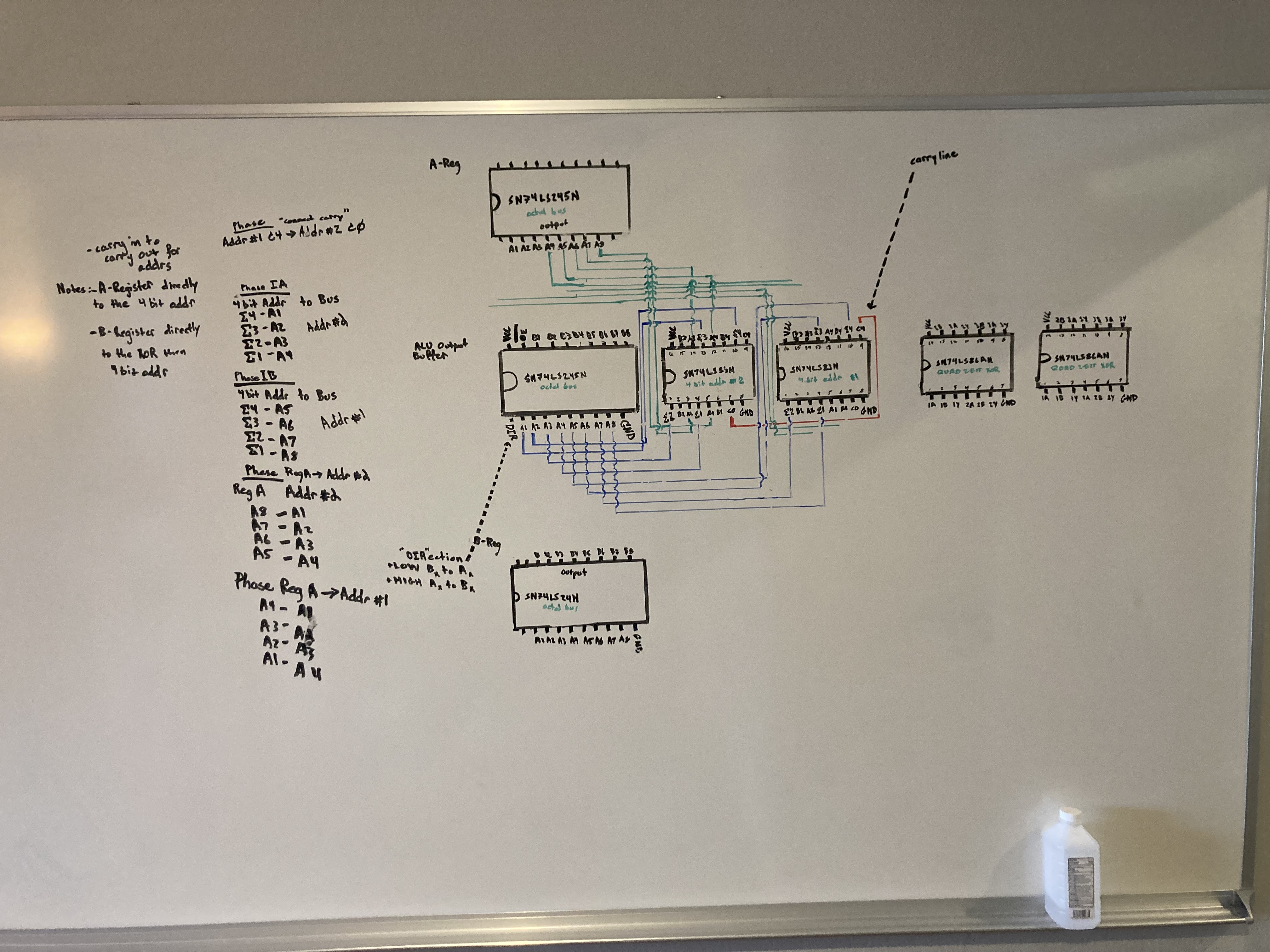

Second attempt at drawing. “The whiteboard attempt” Failed after I started crossing wires and smudging everything to kingdom come.

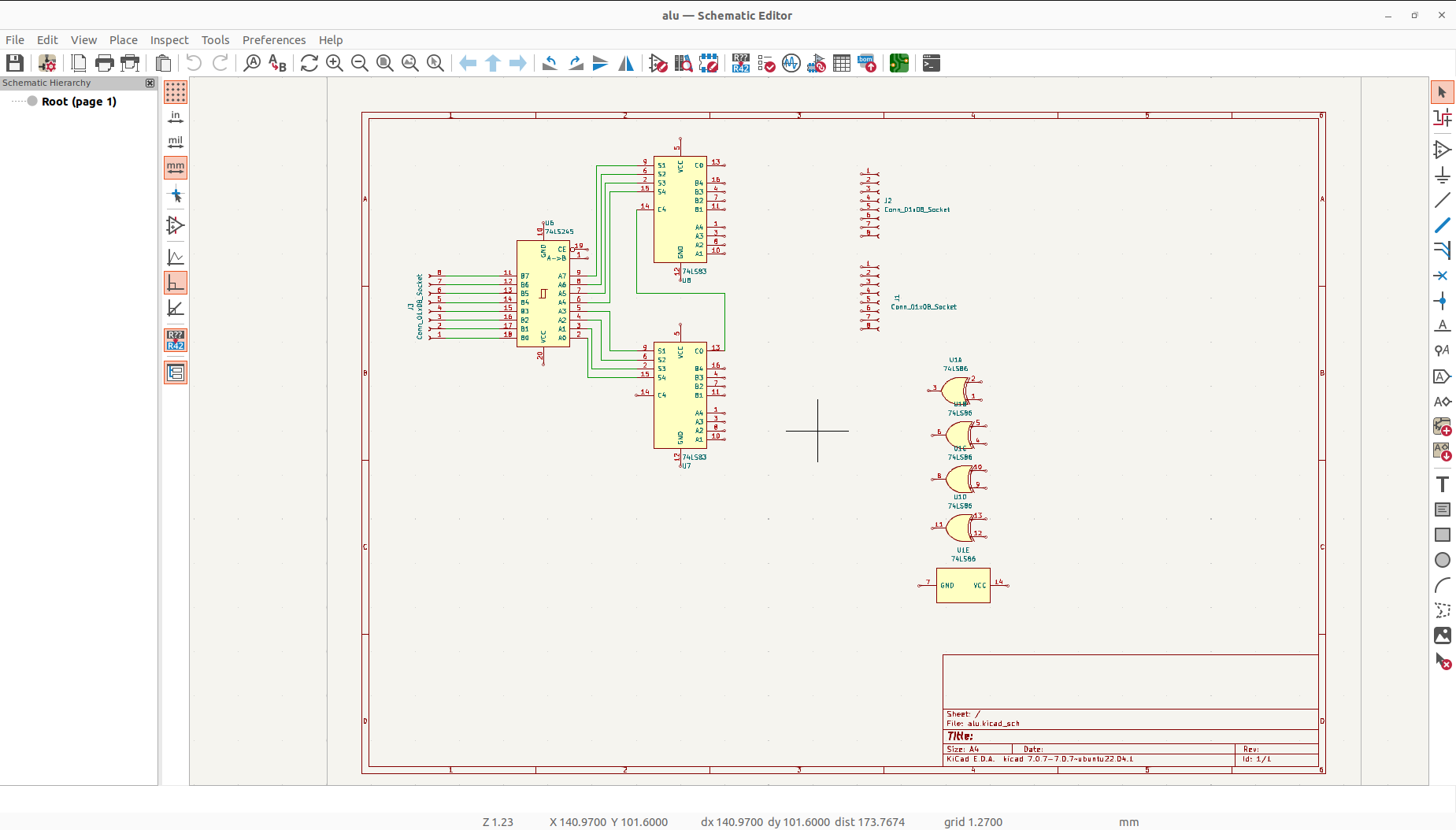

Third attempt at drawing. “Start to play around with KiCAD”
